Stainless Steel Cables & Related Accessories
Beside various types of cable mesh, our company also supplies a wide range of accessories including stainless steel cables, sleeves, eye ends, suspension rope clamps, turnbuckles, thread ends, rod articulation and space basket as shown in the following pictures:
| Item | Wire Diameter | Tensile Strength | Structure | Weight |
|---|---|---|---|---|
| φ | kN | - | kg | |
| SSRC-1 | 1.0 | 0.5 | 6 × 7 + WC | 0.4 |
| SSRC-2 | 1.5 | 1.4 | 6 × 7 + WC | 0.8 |
| SSRC-3 | 2.0 | 2.4 | 6 × 7 + WC | 1.6 |
| SSRC-4 | 3.0 | 5.2 | 6 × 7 + WC | 3.1 |
| SSRC-5 | 4.0 | 9.1 | 6 × 7 + WC | 5.5 |
| SSRC-6 | 5.0 | 13.0 | 6 × 7 + WC | 8.4 |
| SSRC-7 | 6.0 | 19.0 | 6 × 7 + WC | 13.0 |
| SSRC-8 | 8.0 | 38.0 | 6 × 7 + WC | 23.0 |
| SSRC-9 | 2.0 | 2.0 | 6 × 19 + WC | 1.5 |
| SSRC-10 | 3.0 | 4.6 | 6 × 19 + WC | 3.6 |
| SSRC-11 | 4.0 | 8.3 | 6 × 19 + WC | 5.6 |
| SSRC-12 | 5.0 | 13.0 | 6 × 19 + WC | 8.1 |
| SSRC-13 | 6.0 | 18.7 | 6 × 19 + WC | 12.0 |
| SSRC-14 | 8.0 | 33.3 | 6 × 19 + WC | 23.0 |
| SSRC-15 | 10.0 | 52.1 | 6 × 19 + WC | 39.0 |
| SSRC-16 | 12.0 | 75.0 | 6 × 19 + WC | 56.0 |
| SSRC-17 | 16.0 | 133.0 | 6 × 19 + WC | 98.0 |
Stainless steel cable
High tensile stainless steel cable, made of AISI304, 304L, 316, 316L, is available in various diameters and constructions such as 7 × 7 and 7 × 19.
Stainless steel sleeve
Shiny stainless steel sleeves, made of quality AISI316, match our range of cable mesh, perimeter ropes and strands in different diameters well.
Cable eye ends
Four stainless steel cable eye ends are sized down with the smallest in the left and suit cables in diameter of 1.0mm, 1.5mm, 2.0mm and 3.0mm.

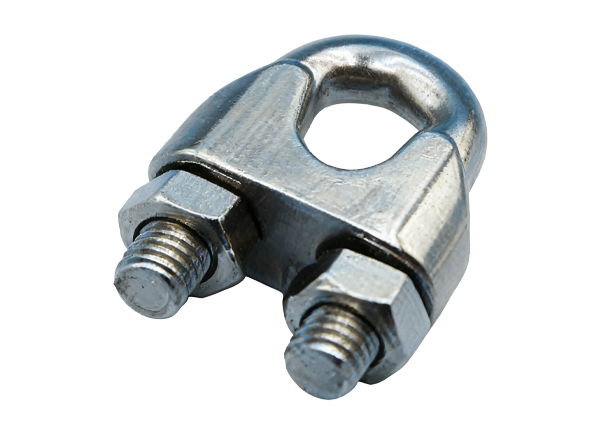

Suspension rope clamps
Two types of suspension rope clamps for bonding cable crossing together, the left is made of stainless steel and the right is made of plastic.
Stainless steel turnbuckle
Stainless steel turnbuckles are ideal for areas that require a lot of tension and are widely used in greening, green plant, balustrade, etc.

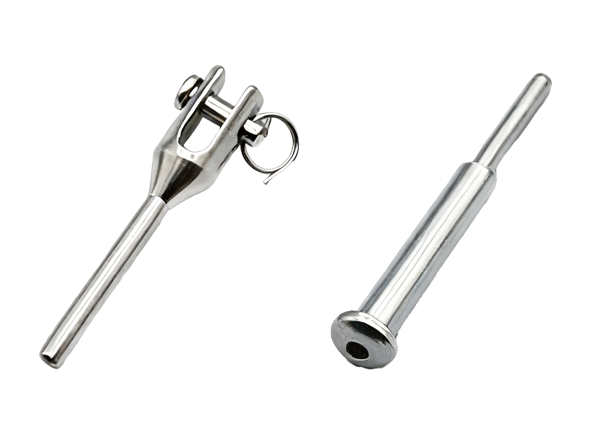

External thread ends
External thread ends, made of high quality stainless steel material, allow for high holding strength and make it easy to assemble rope mesh on site.
Rod articulation
Three rod articulations permit variable angles and available in different sizes to suit internal & external threads in different sizes such as M8, M10 and M12.
Space Basket
Space Basket is an smart stainless steel device for mounting cable meshes to the wall conveniently and quickly to form a green facade for climbing plants.
