Stainless Steel Turnbuckles for Wire Rope and Rigging Systems

Stainless steel turnbuckles, also known as rigging turnbuckles, are mechanical connection and tensioning devices commonly used in rope mesh installations. They feature a metal frame with two oppositely threaded bolts at each end. By rotating the frame, both bolts are simultaneously tightened or loosened, allowing precise adjustment of wire rope and cable length and tension.

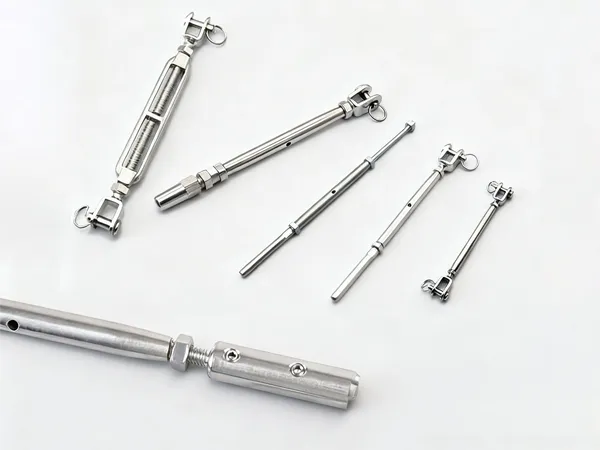

Stainless Steel Turnbuckle

Details:

• Material: High tensile stainless steel AISI 304, 304L, 316, 316L
• Surface treatment: Vibratory polishing or electrolytic polishing
• Main categories: Open turnbuckle and closed turnbuckle
• Specification: Available in sizes for ropes ranging from 2–30 mm, with customization options available.
• Standard: Comply with all states and national building codes upon your request.
• Detailed dimensions reference: (Other specifications available upon request)

Specification:

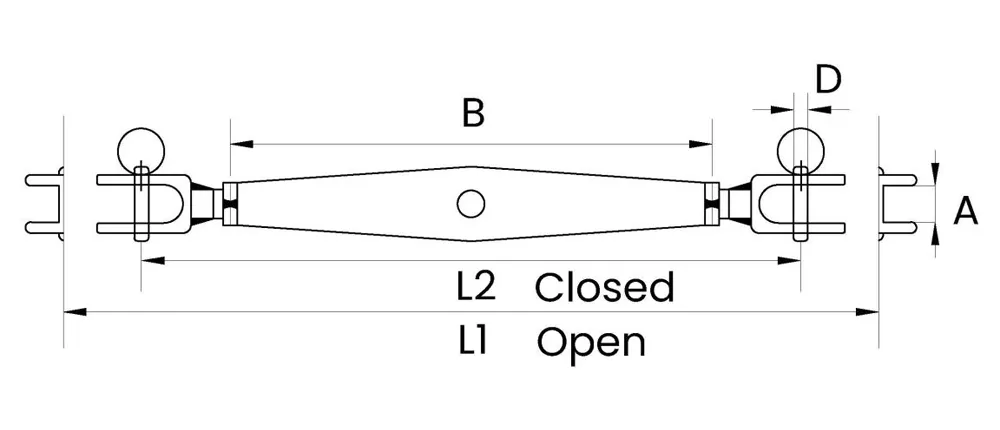

Stainless steel turnbuckle drawing
Specification	A	B	D	L1	L2	Adjustable length	Weight
	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kg)
M5	9	81	5	180	122	58	0.048
M6	9	90	5	210	137	73	0.084
M8	10	110	6	250	155	95	0.122
M10	11	120	8	275	178	97	0.206
M12	16	150	10	350	237	113	0.359
M16	15	190	14	450	280	170	0.84
M20	24	222	15	525	350	175	1.49

Category :

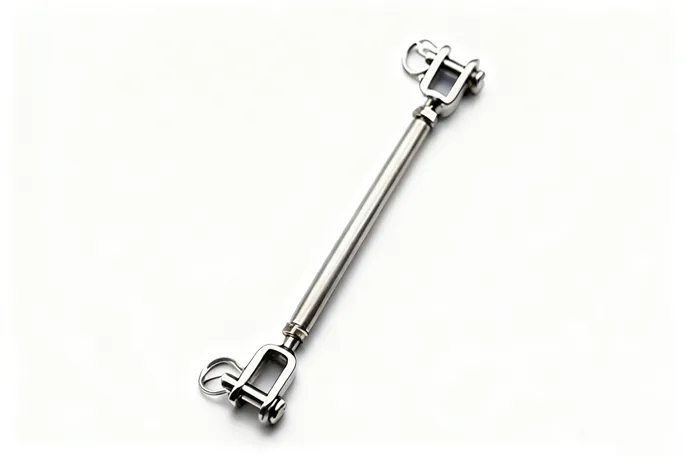

Closed turnbuckle – Jaw & Jaw

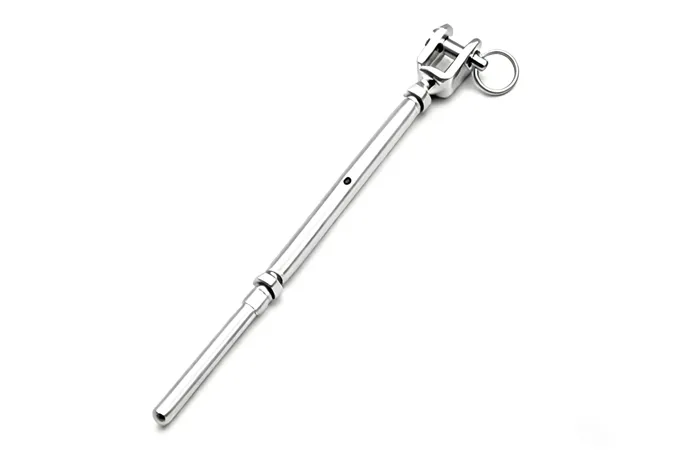

Closed turnbuckle – Jaw & Swage

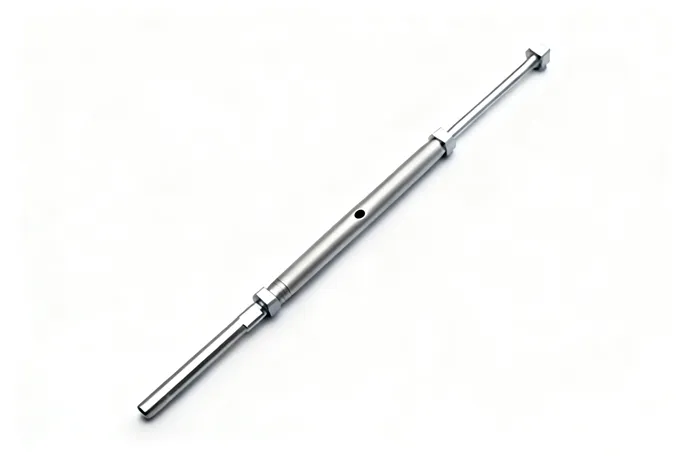

Closed turnbuckle – Swage & Stud

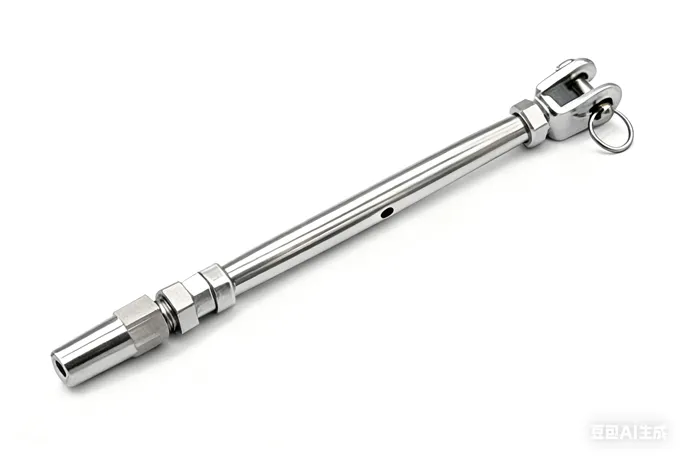

Closed turnbuckle – Swageless fork

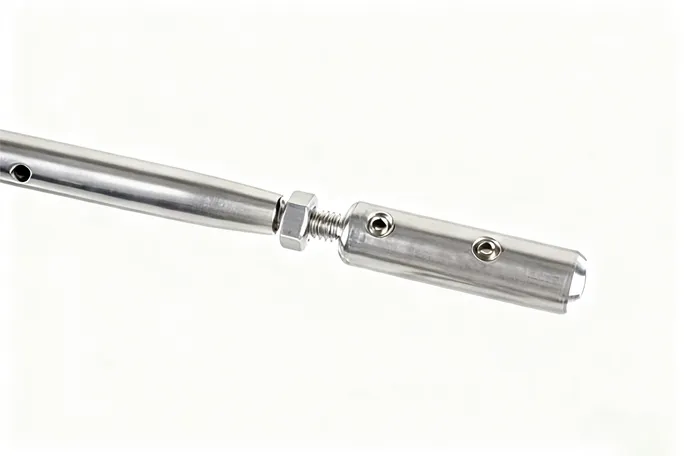

Closed turnbuckle – With jackscrews

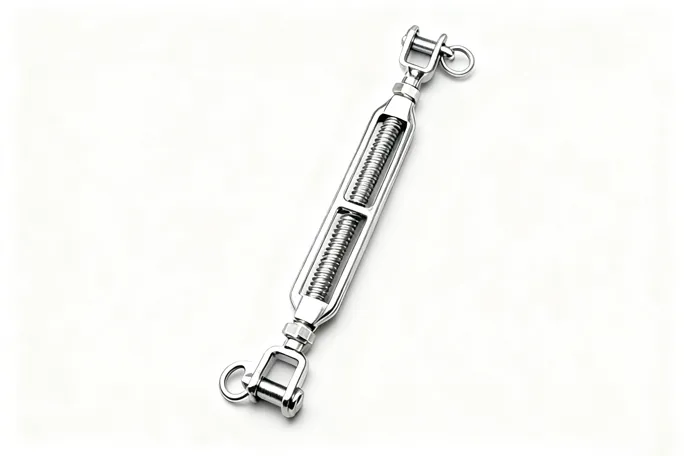

Open turnbuckle – Jaw & Jaw
